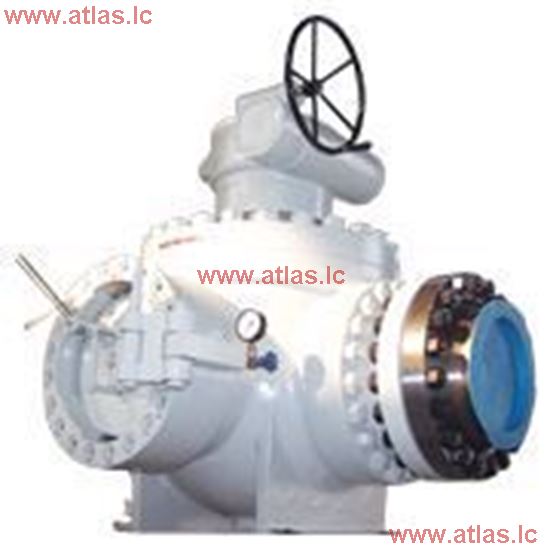

Different Diameter Pig Valve

Nominal Diameter: 2”~40”
Pressure Rating: Class150~Class1500
Product Feature: ①National innovative patent; ②The Fourth Batch Of 2009 Year ‘Provincial National Key Technology Research And Development’ Program Research Product; ③The first class registered product in CNPC,SINOPEC and CNOOC; ④Originated use one pigging device to two different diameter pipeline.

Manufacturer: Dipper Valve
Call for pricing

Type: DD (Different Diameter)

Design Specification: ASME B16.34

Nominal Diameter: DN50~DN1000 (NPS 2” ~ NPS 40”)

Pressure Rating: PN 1.6MPa ~PN25.0MPa (Class150~Class1500)

Actuator: Manual Operated, Electrical Actuator, Pneumatic Actuator etc




Advantage Of Dipper Different Diameter Pig Valve:

1. National Innovative Patent: Different Diameter Pig Valve (Patent No.ZL 2008 1 0044336.2)
2. The Fourth Batch Of 2009 Year ‘Provincial National Key Technology Research And Development’ Program Research Product- Different Diameter Pig Valve
3. The First Class Registered Products To China National Petroleum Corporation
4. The First Class Registered Products To China National Offshore Oil Company
5. The Registered Products To China Aviation Oil Corporation/The Recommend Products Of China Aviation Oil
6. Products Supply To SinoChem
7. The registered products At Global Supplier Network Of Sinopec Corp.
8. Sichuan Famous Product
9. Products Supply To SABIC

Product Description:

DD Pig Valve is a newly kind valve, which can connect two different diameter pipeline for one pipe to pigging.
DD pig valve is a patent product, and Dipper Valve owns complete independent intellectual property right.
1. DD pig valve can substitute for two ordinary pig valve, which simplify the pigging process, save operation time and sharply decrease the maintenance cost.
2. It limited the pig displacement, at the meantime, it also meet the requirement for use different size pig, which effectively guaranteed the pig launching and receiving.
3. The 90°and 180 °travel angel, provide more turning angel of the valve, ensure the continuously and stable running of the pigging working.

Performance Features:

1. Connect Two Different Diameter Pipeline For One Pipeline For Pigging
2. Top Entry Design Valve Body
3. Stem Free From Ball Thrust Force,Stem Rotate Freely, Valve Operation Is Handy
4. Easy To Open And Close Port Cover
5. Zero Leakage
6. Interlocking Design Ensure The Safety Of Operation
7. Fire Safe Design, Fire Safe Test Meet API 6FA and API 607 Requirement
8. Cleanout Design

Typical Application (Checking More On Reference Page)

1. Project: SABIC PCQ-2 PROJECT
End User: SABIC
Installation At: SAUDI ARABIA
Delivery Year: 2014
Nominal Diameter: 14”×6”,14”×8”,10”×6”
Pressure Rating: Class150
Quantity: 10 PCS

2. Project: LinXing Gathering Gas Station Aboveground Program
End User: Sino Gas And Energy Holdings Limited
Installation At: China
Delivery Year: 2014
Nominal Diameter: DN150×200
Pressure Rating: PN6.3MPa
Quantity: 3 PCS
