R23 (type MG13)

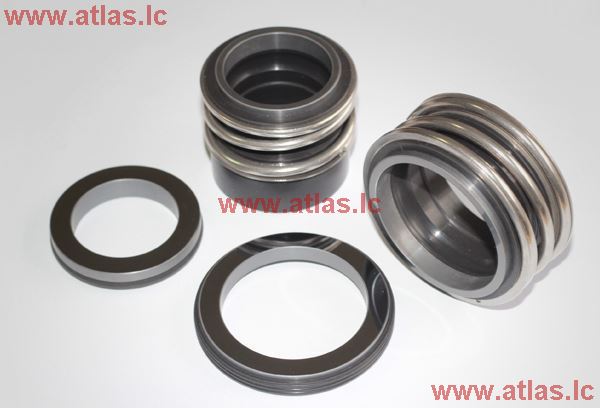

R23 (type MG13) Rubber Bellow Seal
Manufacturer: Atlas Engineering group
SKU: R23
Call for pricing

R23 (type MG13) Rubber Bellow Seal

Analog: EagleBurgmann Type MG13 Rubber Bellow Seal

Performance Capabilities
Temperature: -30C to 200C dependent on the elastomer
Pressure: Up to 12 bar
Speed: Up to 12 m/s
Sizes: 10mm to 100mm

Materials Combination
Face: Carbon, SiC, TC
Seat: Ceramic, SiC, TC
O-rings: NBR, EPDM, VITON etc.
Spring: SS304, SS316
Metal parts: SS304, SS316



       d D D1 L1 L5
R23-10 10 22 19.2 6.5 33.5
R23-12 12 24.5 21.6 5.5 33.5
14-R23 14 28 24.6 5.5 33.5
15-R23 15 28 24.6 6.5 33.5
16-R23 16 28 28 7.5 33.5
R23-18 18 31.5 30 8 37.7
19-R23 19 36.5 35 7.5 37.7
R23-20 20 36.5 35 7.5 37.7
R23-22 22 36.5 35 7.5 37.7
R23-24 24 42 38 7.5 42.7
R23-25 25 42 38 7.5 42.7
R23-28 28 48.5 42 9 42.7
R23-30 30 48.5 45 10.5 42.7
R23-32 32 53 48 10.5 47.7
R23-33 33 53 50 11 47.7
R23-35 35 56.5 52 11 47.7
R23-38 38 58.5 55 10.5 46.2
R23-40 40 61.5 58 10.8 46.2
R23-42 42 65 62 12 51.2
R23-43 43 65 62 12 51.2
R23-45 45 67.5 64 11.5 51.2
R23-48 48 70 68.4 11.5 51.2
R23-50 50 73.5 69.3 11.5 50.7
R23-53 53 78 72.3 12.5 59.2
R23-55 55 80.5 75.4 13.5 59.2
R23-58 58 85 78.4 13.5 59.2
R23-60 60 88 80.4 13.5 59.2
R23-65 65 93 85.4 13 69.2
R23-68 68 96 91.5 13.7 69
R23-70 70 99 92 13 69
R23-75 75 106.5 99 14 69
R23-80 80 111.5 104 15 78.2
R23-85 85 119.5 109 15 76.2
R23-90 90 126.5 114 15 76.2
R23-95 95 131.5 120.3 16 76.2
R23-100 100 136.5 123.3 16 76.2
