S11 (type 5610)

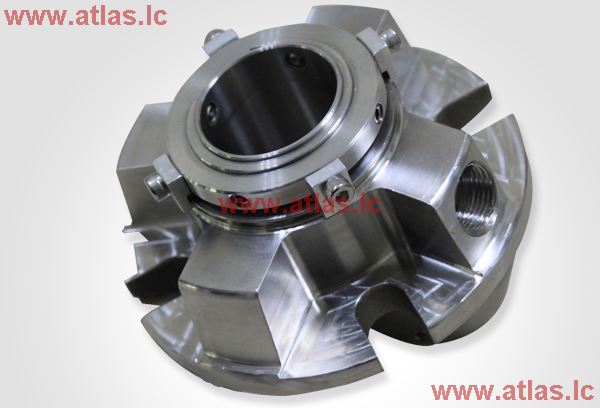

S11 (type 5610) Single Cartridge Seal
Manufacturer: Atlas Engineering group
SKU: S11
Call for pricing

S11 (type 5610) Single Cartridge Seal

Analog: John Crane  Type 5610 Single Cartridge Seal

Performance Capabilities
Temperature: -30C to 250C dependent on the elastomer
Pressure: Up to 75mm/3"  21 bar g/300 psig max.  75mm/3" and over  13 bar g/200 psig max.
Speed: Up to 25 m/s
Sizes: 24mm to 140mm, 1" to 5.5"

Materials Combination
Face: Carbon, SiC, TC
Seat: SiC, TC
O-rings: NBR, EPDM, VITON, Aflas, FEP, Kalrez, Chemraz etc.
Spring: SS316, hastelloy C, AM350
Metal parts: SS316, hastelloy C
